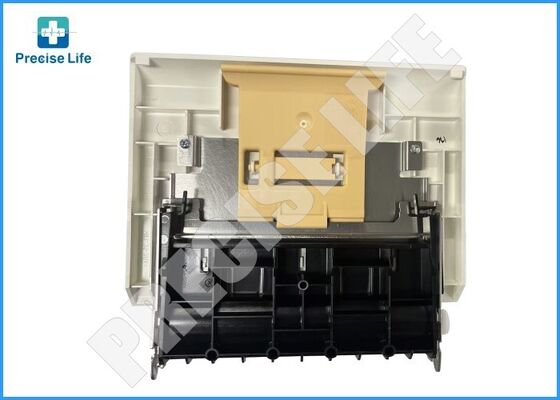

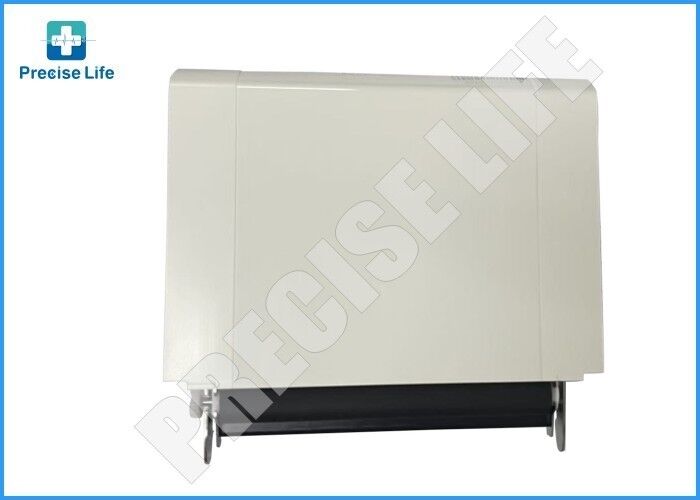

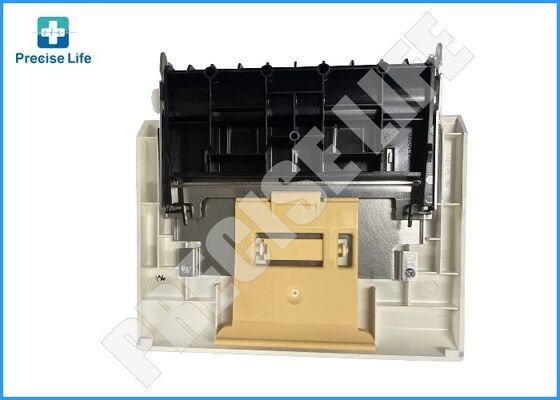

Ph 451261010431 paper drawer assembly Avalon FM20 M2703-64651 Paper drawer assembly
The Ph M2703-64651 Paper Drawer Assembly is a precision-engineered mechanical component designed specifically for the thermal printer system of the Ph Avalon FM20 fetal monitor. This essential paper handling mechanism serves as the loading and support tray for Z-fold thermal recording paper used in cardiotocography (CTG) documentation. The assembly features a smooth-sliding drawer mechanism with an integrated release latch that allows clinicians to quickly load and replace thermal paper during continuous fetal monitoring sessions. Manufactured from durable, medical-grade polymers and metal components, this paper drawer assembly ensures reliable paper feeding and proper alignment for the high-resolution thermal print head. The compact design integrates seamlessly with the FM20 monitor's streamlined housing, maintaining the device's 5.3 kg lightweight profile while providing convenient front-access paper loading functionality essential for uninterrupted labor and delivery monitoring.
Product Specifications
This critical paper handling component serves as the primary media support system for the Avalon FM20 fetal monitor's integrated thermal printer, extensively deployed in labor and delivery units, antenatal testing centers, obstetric clinics, and maternal-fetal medicine departments where continuous fetal heart rate and uterine contraction monitoring is essential. The paper drawer assembly enables seamless loading of Z-fold thermal paper for producing clear, continuous cardiotocography traces documenting fetal heart rate patterns, uterine activity, and maternal vital signs throughout labor and non-stress testing procedures. Obstetric nurses, midwives, and maternal-fetal medicine specialists rely on this component to ensure uninterrupted recording capabilities during critical moments of fetal assessment. The assembly's reliable paper feeding mechanism supports the FM20's advanced monitoring features including Smart Pulse automated coincidence detection and triplet monitoring capabilities, ensuring that accurate physiological data is permanently documented for clinical interpretation and medical-legal documentation.
Compatible Systems
Designed for use with Ph Avalon FM series fetal monitors.
Key Features & Benefits
Front-Access Convenience: The drawer assembly features an intuitive front-loading design that allows rapid paper replacement without repositioning the monitor or disrupting patient monitoring. The press-to-release mechanism enables single-handed operation, crucial during time-sensitive clinical situations.
Reliable Paper Alignment: Precision-engineered guide rails and paper supports ensure consistent thermal paper alignment, preventing paper jams, skewed traces, and recording interruptions that could compromise critical fetal monitoring documentation during labor.
Durable Clinical Construction: Manufactured with medical-grade materials resistant to cleaning agents and disinfection protocols, the drawer assembly maintains smooth mechanical operation through years of continuous clinical use in high-volume obstetric environments.
Z-Fold Paper Compatibility: Optimized for Z-fold thermal paper configuration with automatic stop-sign detection on the final page, ensuring clinicians are alerted when paper replacement is needed, preventing inadvertent gaps in CTG documentation.
Compact Integration: The low-profile drawer design preserves the FM20's compact 6.5-inch display footprint, ensuring the paper handling mechanism does not interfere with monitor positioning on rollstands, bedside tables, or mounting carts during patient care.
Note: All brand names above are for reference only!
